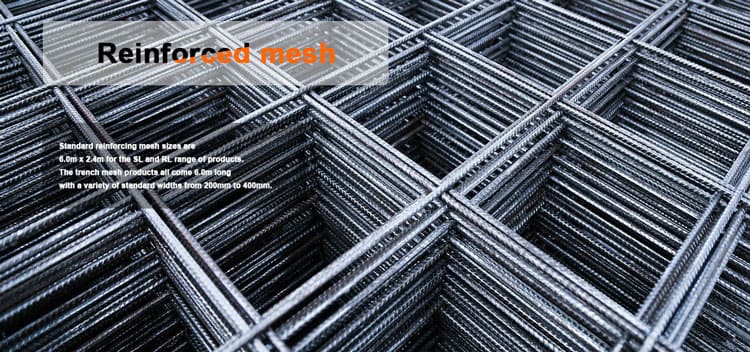

Reinforcing mesh

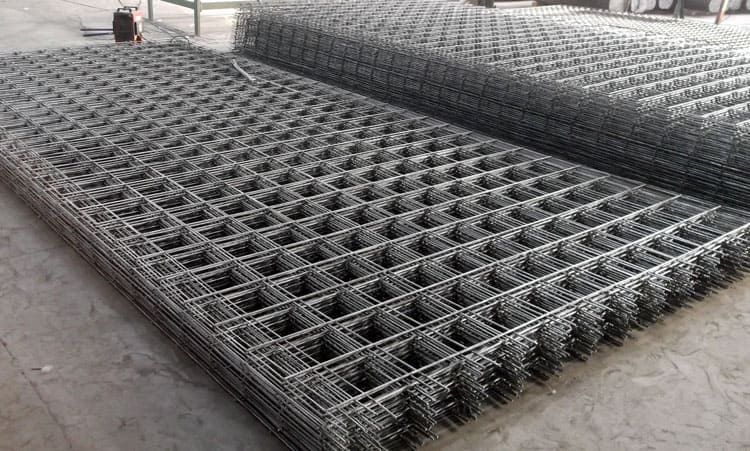

Welded Reinforcement Wire Mesh / Welded reinforcing mesh
Welded reinforcing mesh also known as welded wire reinforcement, is a kind of mesh reinforcement. Reinforcing mesh is a highly efficient, economical and flexible for concrete reinforcement, greatly save the construction time and reducing the labor force. It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof, and walls, etc.
Features of our concrete reinforcing mesh
· The welded wire fabric makes them easier to work on.
· There are different diameters of steel reinforcing mesh each suited for a particular application.
There are different designs of steel reinforcing mesh from bent and rolls to flat sheets.
· As per BS 4482 standards and codes, the stainless steel wire used in the manufacture of the steel reinforcing mesh has a 510MPa tensile strength and 485MPa minimum proof stress.
· The steel reinforcing mesh is rigid making it possible for you to control concrete cover during construction.
· Manufacturers produce steel reinforcing meshunder SANS1024 Standard Specifications.
· The steel bars stay intact whenever immersed in concrete because they are carefully welded in mats.
· You don't have to apply additional surface treatment to the steel reinforcing mesh before use.
· Less field labor needed when making reinforced concrete slabs using this mesh thus drastically speeding up the construction process.
1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
| Ref No. | Std Unit | Longitudinal Wires(mm) | Cross Wires(mm) | Pitch of wire(mm) | Mass(Kg) | Mass(Kg/m2) |
| Q131 | Sheet | 5 | 5 | 150 x 150 | 22.476 | 2.091 |
| Q188 | Sheet | 6 | 6 | 150 x 150 | 32.401 | 3.014 |
| Q221 | Sheet | 6.5/5.0 | 6.5 | 150 x 150 | 33.707 | 3.136 |
| Q295 | Sheet | 7.5/5.5 | 7.5 | 150 x 150 | 44.245 | 4.116 |
| Q378 | Sheet | 8.5/6 | 8.5 | 150 x 150 | 66.659 | 5.157 |
2.Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)
| Ref No. | Std Unit | Longitudinal Wires(mm) | Edge Wires(mm) | Cross Wires(mm) | Mass(Kg) |
| SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
| SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
| SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
| SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
| SL72 (F72) | Sheet | 6.75@ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
| SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
| SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 | 21 |
3.BRITISH STANDARD BS4483
| Ref No. | Std Unit | Longitudinal Wires(mm) | Cross Wires(mm) | Pitch of wire(mm) | No. of sheet per ton | Mass(Kg/m2) |
| A393 | Sheet | 10 | 10 | 200 x 200 | 15 | 6.16 |
| A252 | Sheet | 8 | 8 | 200 x 200 | 22 | 3.95 |
| A193 | Sheet | 7 | 7 | 200 x 200 | 29 | 3.02 |
| A142 | Sheet | 6 | 6 | 200 x 200 | 40 | 2.22 |
| A98 | Sheet | 5 | 5 | 200 x 200 | 57 | 1.54 |
