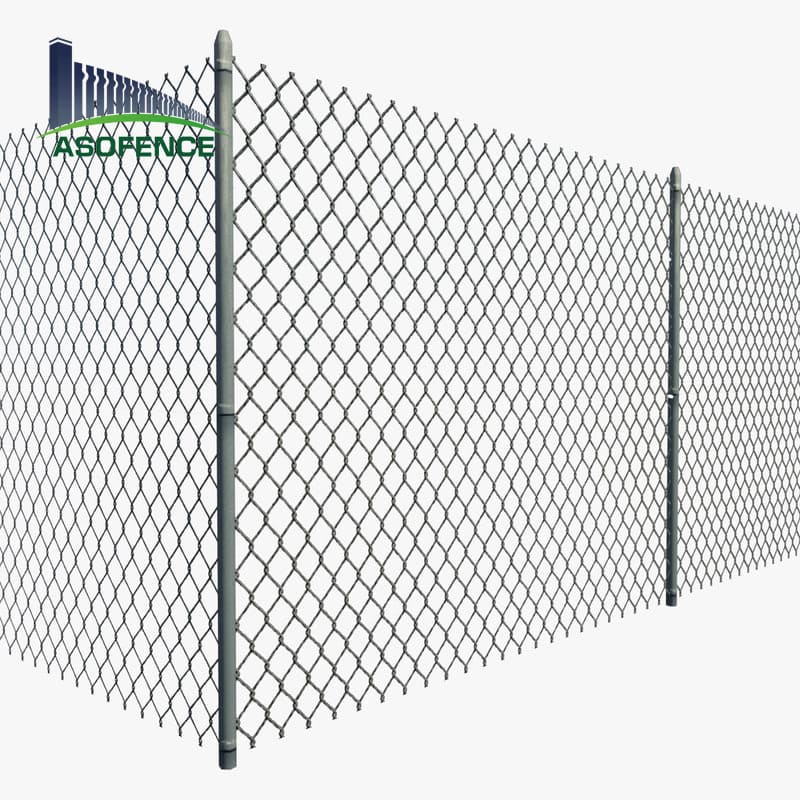

Chain link fence
Chain Link Fence is also named diamond wire mesh , cyclone wire with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.
A chain-link fence is a type of woven fence usually made from galvanized or pvc-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence
Specification of chain link security fence
Material: stainless steel wire, mild steel.
Surface treatment
Zinc-coated steel;
Aluminum coated steel;
Zinc-5% aluminum-mischmetal alloy-coated steel;
PVC and other organic polymer-coated steel.
The colors of PVC wire are forest green, black, red, dark brown, gray, beige.Core wire gauge: 6 gauge – 11 gauge.
Mesh opening size: 3/8 in. – 2 in.
Chain link fabric width: 2.5 m – 3.6 m; length: 5 m – 20 m.
Edge processing mode: normal type, flat type, wrapping type.
Security Chain Link Fabric Considerations Wire Gauge Mesh Opening Size Standard Industrial commercial chain link mesh 9 gauge (0.148 in.) 2 in. Bolt cutters required for heavier 6 gauge wire 6 gauge (0.192 in.) 2 in. Smaller mesh size increases difficulty to climb and time to cut thru 9 gauge (0.148 in.) 1-3/4 in. Bolt cutters required for heavier 6 gauge wire 6 gauge (0.192 in.) 1-3/4 in. 1 in. mesh increases difficulty to climb and increases time to cut thru 11 gauge (0.120 in.) 1 in. 9 gauge wire increases cutting time to that of 11 gauge, above 9 gauge (0.148 in.) 1 in. Small mesh sizes eliminates finger hold for climbing 11 gauge (0.120 in.) 5/8 in. Small mesh requires special equipment to cut through 11 gauge (0.120 in.) 1/2 in. Small mesh with larger wire, maximum security 9 gauge (0.148 in.) 1/2 in. Penetration time is increased to cut through small mesh 11 gauge (0.120 in.) 3/8 in.
feature
Beautiful make-up that is more attractive than a wall boundary when securing your fortress.
Vision barrier-free and good air flow ensures property in sight and beautiful view enjoyment.
Open and transparent, do not obscure sunlight from either side of the fence.
Against the invaders to ensure property safety.
A variety of styles with different heights.
Available coated in PVC or galvanized finishes.
Weather resistant and durable.
Quality guaranteed at an affordable rate.
Removable to define a new perimeter when needed, and repeated use is achieved within your budget.
Meet or exceeds ASTM standards.
Easy to install and low maintenance.
Application
Parks ， Homes ， Play grounds ， Schools ， Baseball fields ， Tennis courts ， Golf courses Factory ， Commercial properties ， Kennels and dairies ， Poultry houses ， Farms ， Water bodies ， Temporary fencing ， Zoo mesh ， Pet cage
For chicken poultry, Gal. Wire 1.5 mm. PVC coated 1.0 mm, chain wire dia. 2.5 mm.
For garden and tennis courts, Gal. Wire 2.0 mm. PVC coated 1.5 mm, chain wire dia. 3.5 mm.
For road fence, Gal. Wire 2.5 mm. PVC coated 1.3 mm, chain wire dia. 3.8 mm.
For sea side and oil field, Gal. Wire 3.5 mm. PVC coated 1.5 mm, chain wire dia. 5.0 mm.

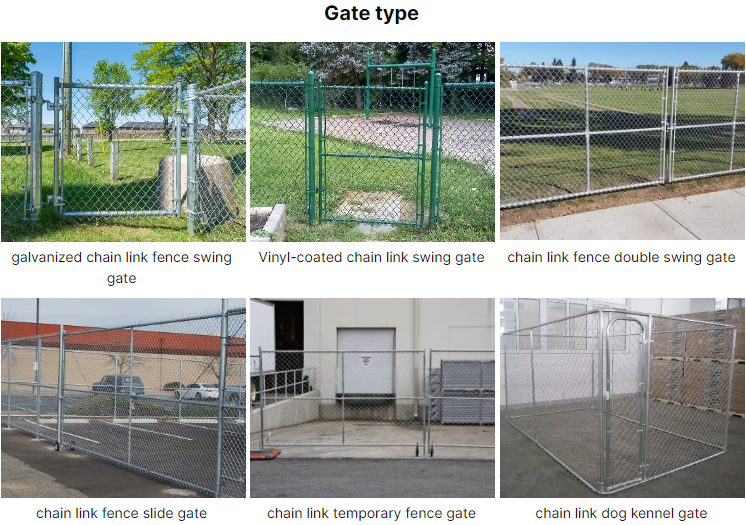

chain link fence gate type
