Clear View Fence
Clear View Fencing is a type of security welded wire mesh fence barrier designed to bring maximum perimeter protection and excellent visibility through the mesh. V-Bends in the clear view fence panels create strength and rigidity. As a high security barrier, clear view security fencing forms a physical and psychological deterrent to unauthorized entry and break-ins.
Our high density mesh clear view Fencing is the most common perimeter barrier or control for architectural profession and defense protection. We design three style standard fence panels according to different secure grade: high security, medium security, and low security.
Clear View Fencing specification
Mesh panel heights:8 m, 2.0 m, 2.2 m, 2.4 m, 3.0 m, higher sizes by special request.
Mesh panel width:515 m.
Coatings:Hot dipped galvanized before welded, then polyester coated black, green, or white color.
Panel bends:45 mm rigidity bends.
Postwith plastic top-cap.
Fixing:clamps, and blot.
Security fencing toppings:fence spikes, razor wire, electrified fencing.
Clear view fencing panels options:high security, medium security, low security.
Table-1: Clear view fencing panels options | |||||
Security options | Aperture | Vertical Wire Thickness | Horizontal Thickness | Features | |
High Security | 76 mm × 12.5 mm | 4 mm | 3.5 mm | most secure, anti-cut, anti-climb, highly visible | |
Medium Security | 76 mm × 25 mm | 4 mm | 4 mm | anti-cut, and highly visible | |
Low Security | 76 mm × 50 mm | 4 mm | 4 mm | anti-cut, and highly visible, cost effective | |
Table-2: Clear view fencing installation posts and clamps | |||||
Fence height | Panel size | Posts section | Post length | No.of bends | No. of clamps |
1800 mm | 1800 mm × 2515 mm | 60 × 60 × 2 mm | 2400 mm | 4 | 16 |
2000 mm | 2000 mm × 2515 mm | 60 × 60 × 2 mm | 2600 mm | 4 | 16 |
2200 mm | 2200 mm × 2515 mm | 60 × 60 × 2 mm | 2800 mm | 4 | 16 |
2400 mm | 2400 mm × 2515 mm | 80 × 80 × 3 mm | 3000 mm | 4 | 16 |
3000 mm | 3000 mm × 2515 mm | 80 × 80 × 3 mm | 3600 mm | 5 | 20 |

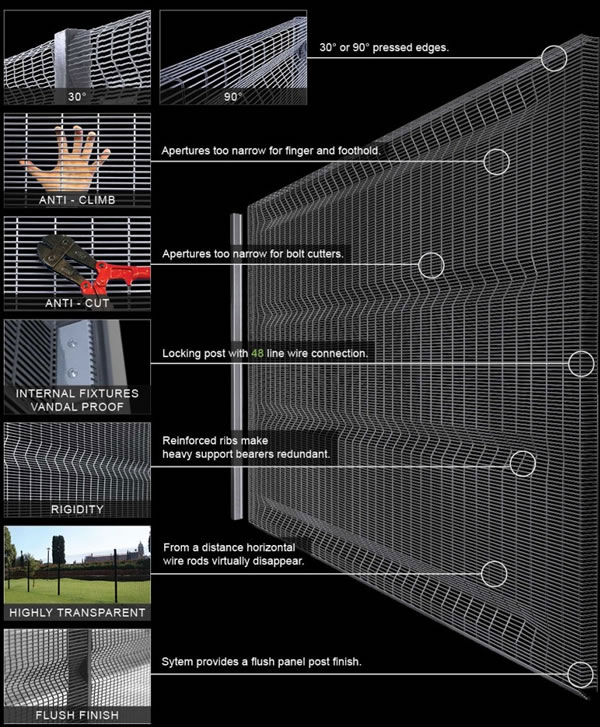

Our clear view fence advantages
Anti-climb, anti-cut and 85% - 90% see-thru.
HD Galv and polyester coated for corrosion and rust resistance.
High to low security fencing options.
V-Bends in the clear view fencing panels create more strength and rigidity.
Clear view fence panels fixing to square tube post makes maximum security and strength.
We have professional installations teams.

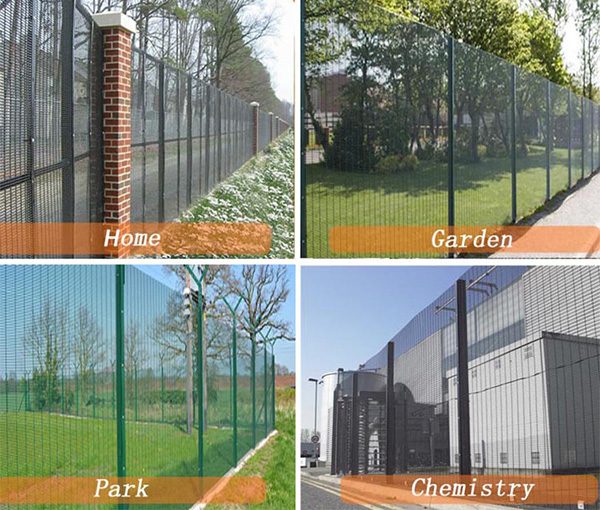

Clear view fence is suitable for high, medium, and low security application as the following:
Warehousing isolation, workshop segmentation.
Road, railway, airport fence.
Prison, military security fence.
Medical facilities, educational school, recreational fencing.
Residential areas, business district, government agencies, fence or gates.
Industrial area, farm house fence.
Can be suitable for flat or slope area.
