High Security Fence

358 Security Fence, this production offers the best value for performance, durability and appearance.

'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric.  It is a professional structure designed for high security environments, combined with an steel framework, coated with heavily zinc or RAL color Powder coating.

358 Security Fence is anti-cut, anti-climb, water resistance powder coated with marine grade Plastic. Popular product is ½” x 3” 8 gauge galvanized, and ½” x 3” 10.5 gauge GAW plus heavy duty PVC coating. Wire: 4 mm, galvanized + powder coating.

Detail Information of 358 Security Fence

 1. Height1000mm to 6000mm, popular: 2450mm, 3000mm
 2. Width1000mm to 6000mm, popular: 2200mm, 2450mm
 3. Wire thickness3mm to 6mm, the most popular is 4mm (BWG Gauge 8#).
 4. Hole size76.2mm x 12.7mm (3 inch x 0.5 inch).
 5. PostSquare post, popular: 60mm x 60mm, 80mm x 80mm
 6. V-topincluding angle iron, barbed wire, razor barbed wire.BTO22
 7. Fastenerflat bar, screw, clamp
 8. Surface treatmenthot- dipped galvanized electric galvanized with polyester powder coated (all colors in RAL)


ASOFence Technical specifications info about the Secure-Wall anti climb security 358 fence

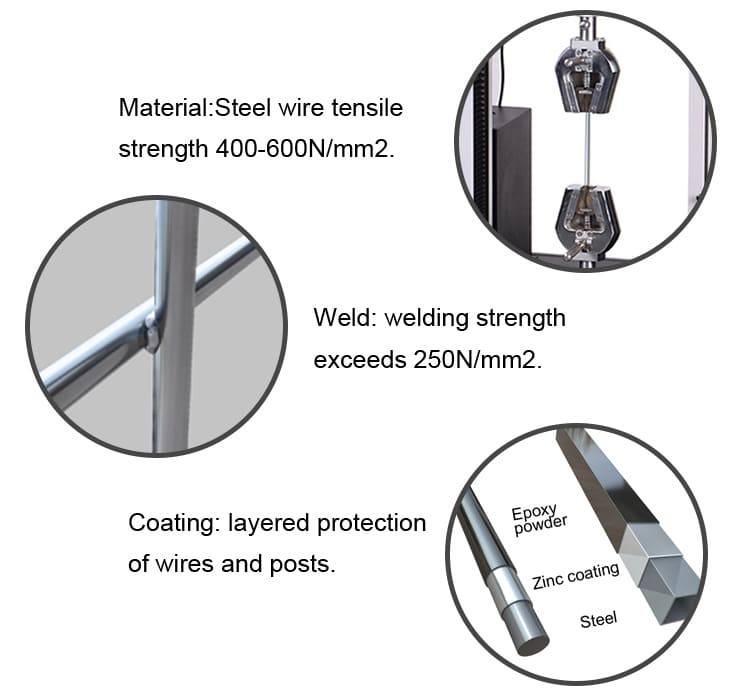

Tension strength 400-600Mpa
Welding strength50% of wire tension strength
Yield strength 485Mpa
Hot dip galvanized Zinc coating thick 70um (500g/m²)
Polyester power coated thick 100um
Brand of Polyester AkzoNobel
Standard ASTM-123,  BS10244-2 Z40, BS1722-14, BS13438
Life Warranty At least 10 Years
Inspection report we have TUV,  SGS,  BV,  Intertek

It including panel mesh ,post and accessories ,the panel mesh is welded with galvanized wire as per EN10244 and the post is shaped from galvanized coils as per EN10346;
The bolts and nuts are stainless steel 304 , panel and post are powder coated with Akzo Nobel- Interpon 600 series powder and pass 500H-1000H salty spray followed by ISO9227.

358 Security Fence  provides an ideal solution for a wide variety of high security perimeter and access control applications. The climb resistant mesh with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.

Apartment buildings protection;
Industrial facilities protection;
The Airport protection;
The Port protection;
The Power station protection;
Roads and railways protection solutions;
The border protection solutions;
Military defence and prison protection solutions;
Solar Farm/Construction/Warehouse Site Protection;
Telecom & Mobile tower base station protection solutions; etc
